24W Continuous Linear Belt Track Grille Light

                                        24W Continuous Linear Belt Track Grille Light

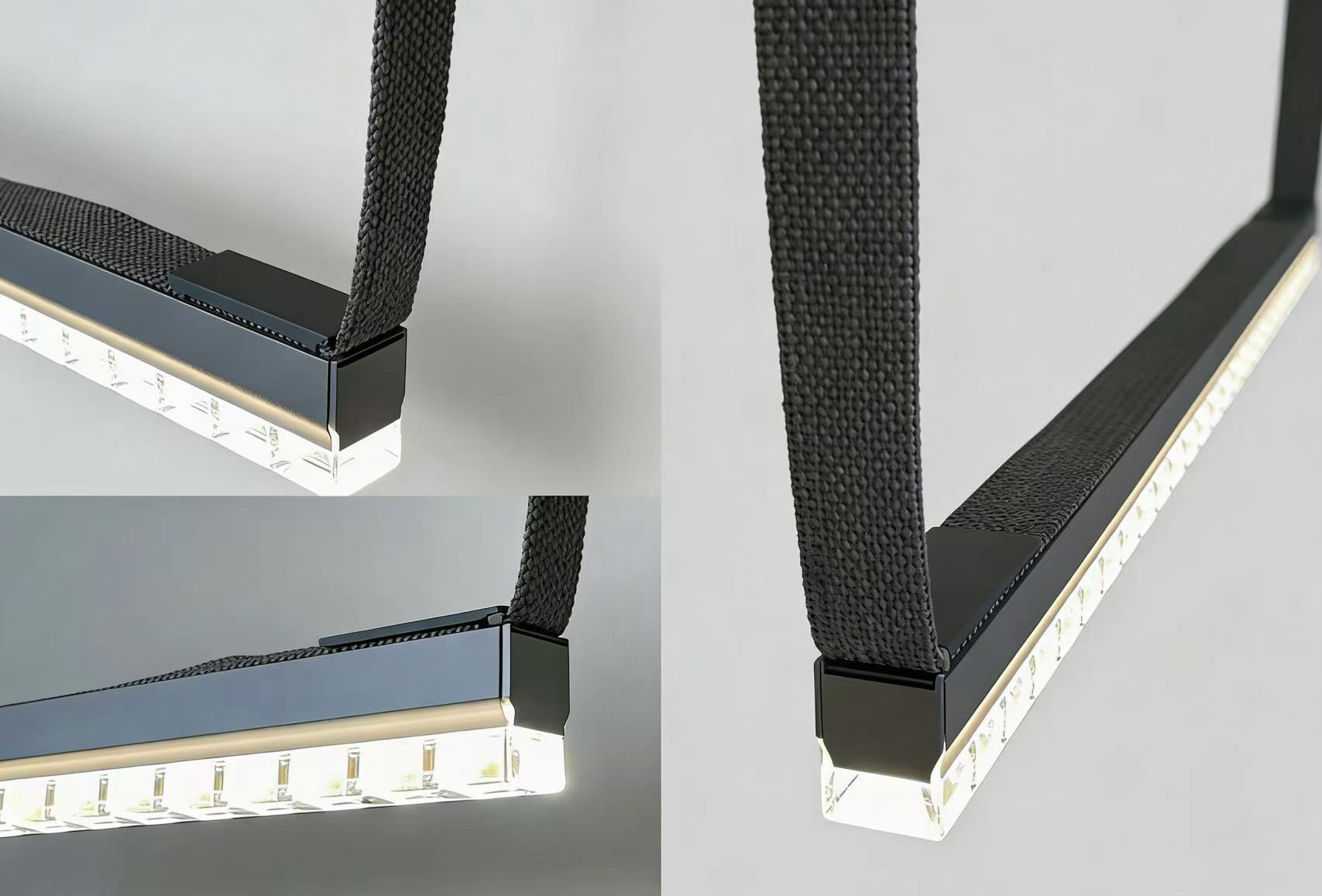

The 24W continuous linear lighting solution is developed based on a flexible textile belt mounting system, offering a new alternative to traditional rigid aluminum track lighting.

Instead of conventional metal profiles, the system uses a soft architectural belt structure that allows designers to create fluid, uninterrupted lighting compositions across ceilings and spatial layouts. This results in a cleaner visual expression and greater freedom in lighting design.

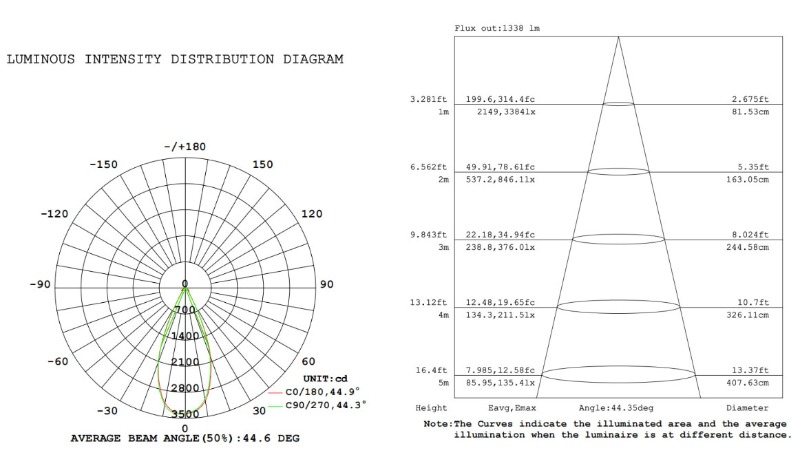

The luminaire integrates a louvered anti-glare optical design, delivering soft and controlled illumination that minimizes visual discomfort while maintaining strong functional brightness. It is especially suitable for environments that require long-duration visual comfort.

With a low-power 24W configuration, the system supports energy-efficient operation while maintaining consistent linear light output across extended runs. Its modular nature enables flexible installation, scalable expansion, and adaptation to both straight and curved design concepts.

This product belongs to a new generation of fabric-based linear lighting systems, combining architectural aesthetics with functional performance for modern interior applications.

•  Patent and unique design
•  All our products have private toolings. We design every model by ourselves. You could never buy the exactly same product from other suppliers in the market.
•  Unique snap fit magnetic design,tool- free installation
•  Excellent surface finish
•  CE /Rohs certified

This flexible linear lighting is designed for architectural spaces that demand both visual continuity and design freedom, especially where traditional track lighting systems are too rigid or visually intrusive.

In office environments, it helps create clean and continuous light lines that improve spatial clarity while reducing glare on work surfaces and digital screens. The soft belt installation allows lighting layouts to follow architectural forms more naturally.

In retail applications, it enhances product presentation through uniform illumination and adaptable lighting paths that can be adjusted according to display strategies.

In hospitality spaces such as hotels, restaurants, and lounges, the system supports warm and elegant lighting atmospheres, helping designers achieve a more immersive spatial experience through continuous light flow.

It is also highly suitable for galleries, exhibitions, and bespoke architectural projects where lighting needs to follow irregular or creative ceiling geometries. Compared with traditional metal track systems, this textile-based solution provides significantly greater flexibility and a more refined visual result.

1. Why Vandolite belt track light is a new concept lighting and what’s the difference between Vando and Others?

• Patent and unique design
• All our products have private toolings. We design every model by ourselves. You could never buy the exactly same product from other suppliers in the market.
• Safe and Strong electrical conductive: With 4line suppot 0-10/triac/DALI dimming.
• Easy Customization : Belt could be random cut, lamps could be placed randomly.
• Innovation&Comprehensible:Belt lighting can freely create both independent and interactive areas,creating opportunities for relaxed communication,collaboration,and exploration.
• Emotional connection: Belt and lamp with comfortable colors options,creates a uniquely personalized emotional atmosphere with its smooth and continuous form.
• Widespread use System: Create breathtaking light displays that span from ceiling to floor, reaching a staggering height of 30 meters.

2. Are the Belt/Tracks field-cuttable?

• Yes, you might share the project drawing,our sale team and excellent R&D team will provide the solution according your specific requirement

3. For the Belt track system what's the difference between 3 wire and 4 wire?

• The cables: Inside 4 line belt are silicone conductive wires  inside 3 line belt are just bare copper wires.
• Patent issue : 4 line belt doesn’t have patent issue. 4 line belt is our unique design, specially developed by our company.    3 line belt is exactly same to Vibia’s plusminus, it’s Vibia’s patent product.
• Insulation &size : The silicone conductive wires can also be made into 2 or 3 line ;
• The silicone layers ensure the good insulation performance of belt track;
• Dali control:  2 cables in the middle of 4 line belt can be used for Dali control, but the bare copper wires cannot be used to make a 4-line belt of this size.
• Price: 3 line belt is much cheaper than 4 line belt, but most of our customers prefer 4 line belt cause they want to avoid patent issue. You can think about this and choose the most suitable one for you.

4. Do you accept small project order? What’s order lead time?

• We don’t have MOQ limited. Lead times may vary depending on order quantity and materials availability. Our team will provide you with an estimated delivery time when you place your order.

5. How is the quality guarantee?

• Our strictly and reliable QC team always 100% inspection on raw materials, 100% aging test and final Inspection before shipment. We provide 3years warranty from the shipment date.
