Magnetic Track LED Spotlight

Products

Home

Belt Track System

15W Dali Dimmable Hemisphere Woven Belt Light

15W Dali Dimmable Hemisphere Woven Belt Light

This creative design features a conductive textile belt that carries the electricity to the multiple luminaires that you can click and connect along with the belt. Designed to conform to any kind of architecture, professionals can personalise their configuration, conducting light with complete freedom by drawing the belt to the desired position.

External dimming interface withTriac,0/1-10V,Dali

  • Item No :

    Hemisphere200
  • Order(MOQ) :

    50Pcs
  • Color :

    Black/White/Terra Red/Green/Beige
  • Lead Time :

    Regular 20 days ,Customized 30 days
  • Installation :

    Surface/Pendant/Recessed
  • Customization Option :

    Support Custom

                                    24v Rohs ETL Modular Recessed Linear Lighting System

Product Description

This hemispherical diffuse light, designed for the 24V belt track system, features a smooth, rounded form that delivers soft, even illumination. Its gentle diffusion reduces glare while maintaining a clean and modern aesthetic.



Lightweight and easy to install, it connects seamlessly to the belt track with a simple plug-in mechanism, allowing effortless repositioning along the track. The design balances elegance with practicality, making adjustments quick and intuitive.



With its refined shape and high-quality finish, this light complements the modular flexibility of the belt track system. It enhances the overall visual harmony while providing versatile, controlled illumination wherever it’s needed.



Specification

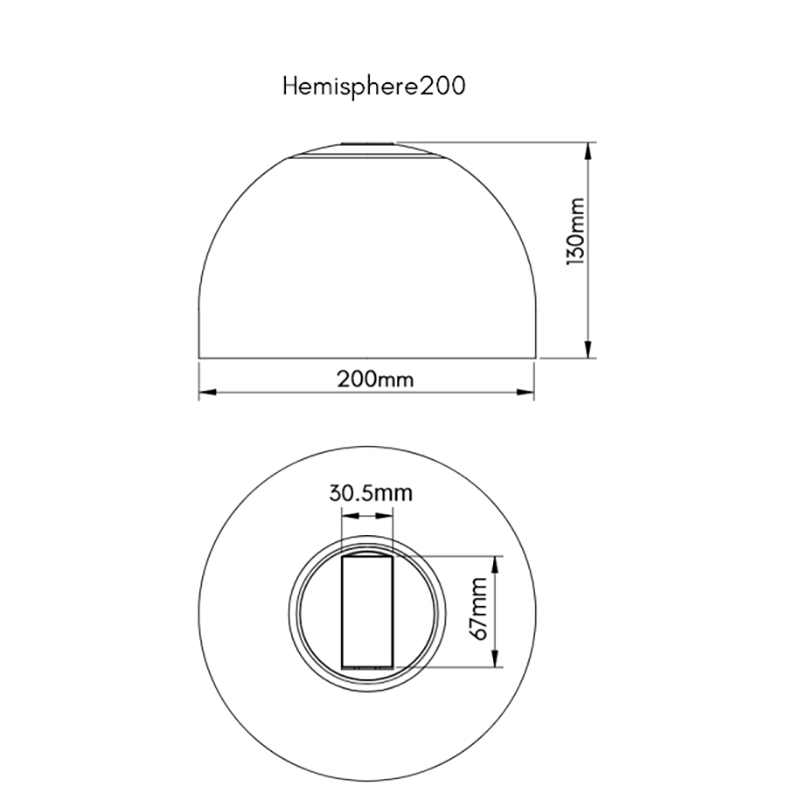

Product Code: Hemisphere200
Color:    Black/White/Terra Red/Green/Beige
Installation:     Surface/Pendant
Power:     15W
 Lumen:   1005Lm
Environment:    Indoor
Beam angle:     Diffuse
CCT:         2700K/3000K/4000K
CRI:    >90
LED:        OSRAM
DIM:       Triac,0/1-10V,Dali,Tuya,Zigbee



Product Features
  •  Patent and unique design
  •  All our products have private toolings. We design every model by ourselves. You could never buy the exactly same product from other suppliers in the market.
  •  Unique snap fit magnetic design,tool- free installation
  •  Excellent surface finish
  •  CE /Rohs certified



Product Application

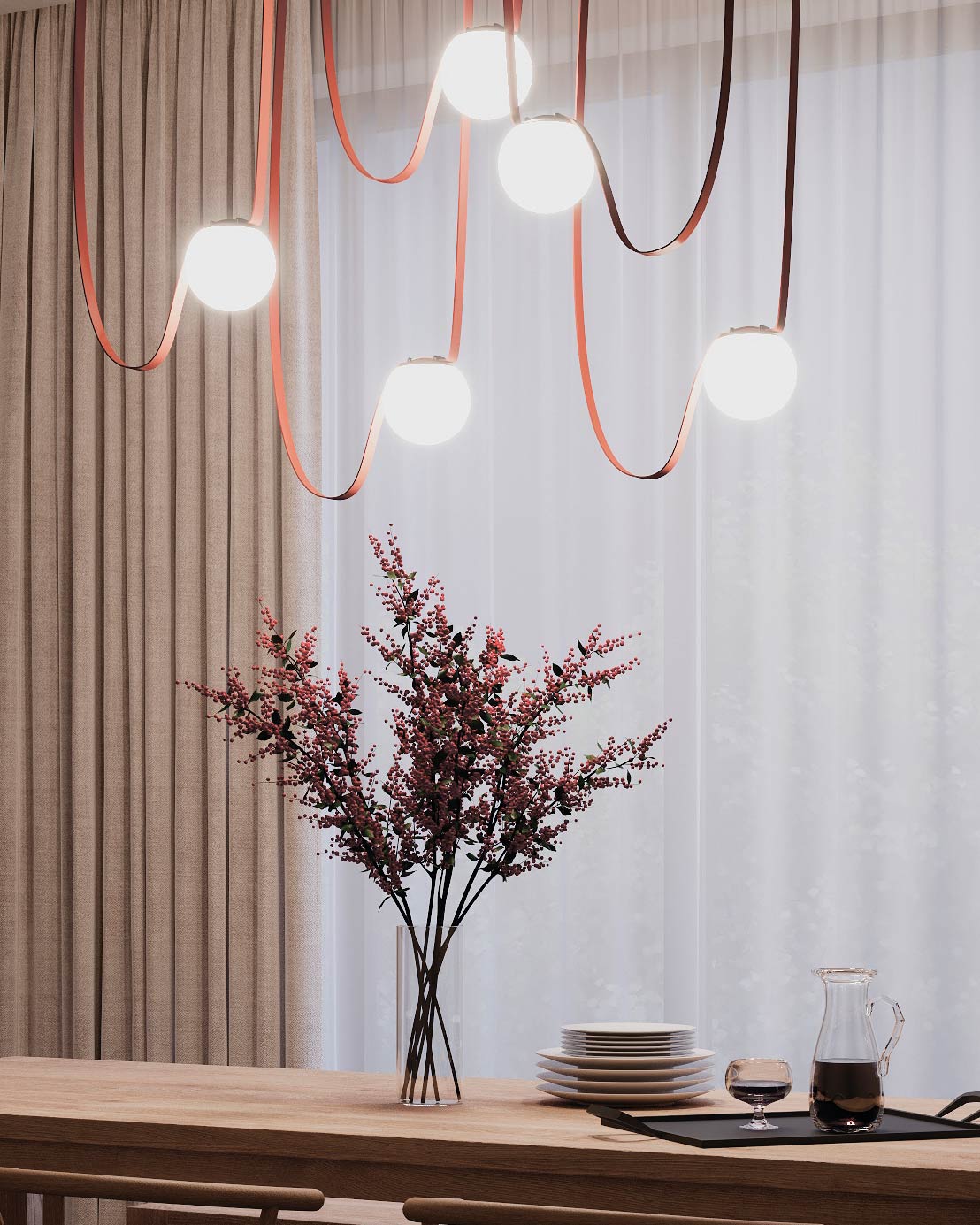

The hemispherical diffuse light on the LED belt track brings a sense of ease and flexibility to any space. Its soft, even glow gently fills the room without harsh shadows, creating a warm, inviting atmosphere that feels natural and comfortable. Because it can be freely moved along the belt track, you can play with placement—cluster a few together for a playful rhythm, space them out for subtle highlights, or angle them to emphasize shapes and textures.



Its round, minimalist form blends seamlessly with modern interiors, while the diffuse light ensures a cozy, glare-free experience whether people are working, relaxing, or socializing. The plug-in design makes repositioning effortless, so changing the mood or updating the layout is quick and intuitive.

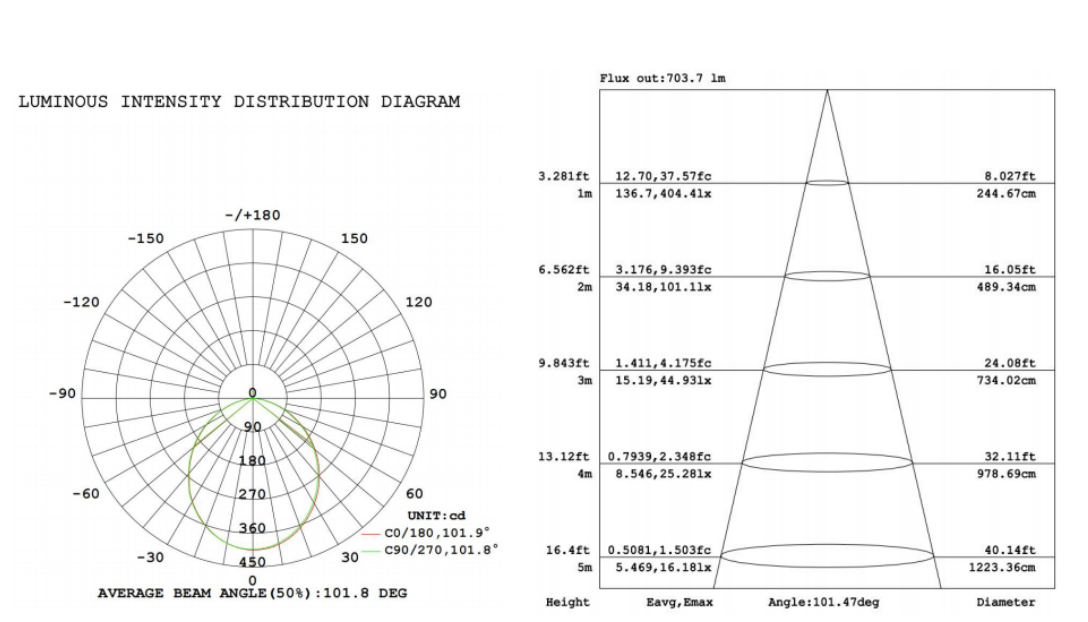

Light Distribution



FAQ

1. Why Vandolite belt track light is a new concept lighting and what’s the difference between Vando and Others?

  • Patent and unique design
  • All our products have private toolings. We design every model by ourselves. You could never buy the exactly same product from other suppliers in the market.
  • Safe and Strong electrical conductive: With 4line suppot 0-10/triac/DALI dimming.
  • Easy Customization : Belt could be random cut, lamps could be placed randomly.
  • Innovation&Comprehensible:Belt lighting can freely create both independent and interactive areas,creating opportunities for relaxed communication,collaboration,and exploration.
  • Emotional connection: Belt and lamp with comfortable colors options,creates a uniquely personalized emotional atmosphere with its smooth and continuous form.
  • Widespread use System: Create breathtaking light displays that span from ceiling to floor, reaching a staggering height of 30 meters.



2. Are the Belt/Tracks field-cuttable?

  • Yes, you might share the project drawing,our sale team and excellent R&D team will provide the solution according your specific requirement



3. For the Belt track system what's the difference between 3 wire and 4 wire?

  • The cables: Inside 4 line belt are silicone conductive wires  inside 3 line belt are just bare copper wires.
  • Patent issue : 4 line belt doesn’t have patent issue. 4 line belt is our unique design, specially developed by our company.    3 line belt is exactly same to Vibia’s plusminus, it’s Vibia’s patent product.
  • Insulation &size : The silicone conductive wires can also be made into 2 or 3 line ;
  • The silicone layers ensure the good insulation performance of belt track;
  • Dali control:  2 cables in the middle of 4 line belt can be used for Dali control, but the bare copper wires cannot be used to make a 4-line belt of this size.
  • Price: 3 line belt is much cheaper than 4 line belt, but most of our customers prefer 4 line belt cause they want to avoid patent issue. You can think about this and choose the most suitable one for you.



4. Do you accept small project order? What’s order lead time?

  • We don’t have MOQ limited. Lead times may vary depending on order quantity and materials availability. Our team will provide you with an estimated delivery time when you place your order.



5. How is the quality guarantee?

  • Our strictly and reliable QC team always 100% inspection on raw materials, 100% aging test and final Inspection before shipment. We provide 3years warranty from the shipment date.
