Can Magnetic Track Lighting Be Dimmable?

Magnetic track lighting is increasingly popular in modern homes, offices, and commercial spaces due to its flexibility, sleek design, and easy installation. A common question we receive is: “Can magnetic track lighting be dimmable?” The short answer is yes, but achieving smooth dimming requires proper planning and the right components.

How Dimmable Magnetic Track Lighting Works

Magnetic track lights typically use low-voltage LED modules powered through a track system. To dim these lights, the LED driver and dimming controller must be compatible. Unlike traditional incandescent bulbs, LED lights require specific dimming technology to prevent flickering, buzzing, or uneven brightness.

At Vando, we use a linear constant current driver for our standard dimmable fixtures, similar to an LED strip.

• Main component: Constant current IC SM15106T
• Input voltage: 5–80V DC
• Maximum output current: 1.2A

Advantages of Our Linear Constant Current Driver:

• Simple and stable operation in DC systems
• Compatible with dimmable constant voltage drivers to realize dim functions
• Widely used in residential and commercial magnetic track systems

External Driver Options

The choice of an external driver depends on whether you need dimmable or non-dimmable functionality:

• Non-dimmable: Output voltage must be 24V, as our system is 24V.
• Dimmable: We offer customized driver options for our magnetic lighting system. These drivers provide:

1. Smooth dimming without noise or flicker
2. Optimal compatibility with our magnetic track driver box

Three Common Dimming Methods for Magnetic Track Lighting

Magnetic track lighting systems usually support several professional dimming solutions. The most commonly used ones are TRIAC dimming, 0/1-10V dimming, and DALI dimming. Each method is suitable for different installation environments and control requirements.

TRIAC dimming is one of the most common solutions for residential lighting. It works with standard wall-mounted dimmer switches and is relatively easy to install. However, compatibility between the driver and dimmer is important to avoid flickering at low brightness levels.

0/1-10V dimming uses a separate control signal to adjust the brightness of LED fixtures. It provides smooth, linear dimming and is widely used in offices, retail stores, and other commercial environments.

DALI is a digital lighting control protocol that allows individual addressing and advanced lighting scenes. It is commonly used in high-end commercial projects, such as hotels, museums, and smart buildings, where centralized lighting management is required.

Benefits of Dimmable Magnetic Track Lighting

Dimmable magnetic track lighting offers multiple advantages:

• Customizable Ambience: Adjust light intensity to create a cozy home environment or a professional office atmosphere.
• Energy Efficiency: Lower light output reduces energy consumption, saving on electricity costs.
• Extended LED Lifespan: Operating at lower brightness can help LEDs last longer.
• Flexible Scenes: Perfect for restaurants, galleries, or retail stores where lighting needs change frequently.

Installation Tips for Smooth Dimming

To achieve the best dimming results, follow these tips:

1. Use Compatible Dimmers: Ensure your dimmer is suitable for LED systems.
2. Check Maximum Load: The total wattage of all track lights does not exceed the dimmer’s capacity.
3. Test Before Final Installation: Connect the dimmer and lights temporarily to check for flicker or buzzing.
4. Consider Smart Controls: Smart dimmers or Wi-Fi controllers can adjust brightness remotely and even schedule scenes.

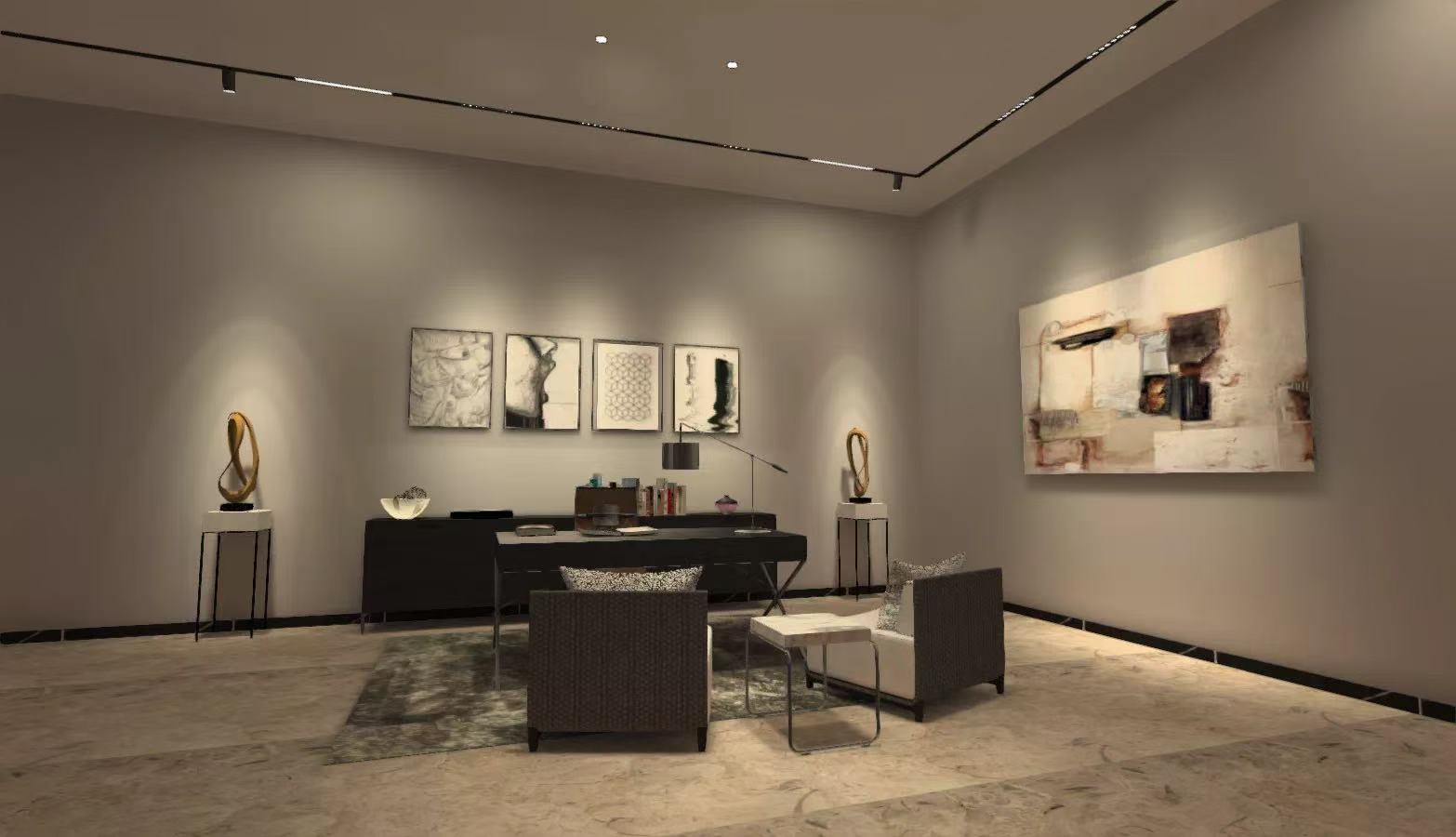

Creating Lighting Layers with Dimmable Track Fixtures

Another advantage of dimmable magnetic track lighting is the ability to create layered lighting within the same track system.

Instead of relying on a single brightness level for the entire room, designers often divide lighting into several layers:

• Ambient lighting for general illumination
• Accent lighting for highlighting objects or architectural features
• Task lighting for activities such as reading or working

Magnetic track systems can accommodate different types of fixtures—including spotlights, linear lights, and flood modules—installed along the same track. When these fixtures support dimming, each lighting layer can be adjusted to achieve the desired visual balance.

For example, accent lighting aimed at artwork or product displays may remain brighter than the surrounding ambient lighting. This contrast helps guide attention and improves the overall visual experience within the space.

Ready to upgrade your lighting? Contact us today to discuss your project and find the ideal dimmable magnetic track lighting solution.

FAQ

Why do dimmable magnetic track lights sometimes flicker?

Flickering is usually caused by driver and dimmer incompatibility. Using a driver specifically designed for the chosen dimming protocol and ensuring proper PWM frequency can prevent flicker and noise.

Can magnetic track lighting be integrated into smart lighting systems?

Yes. Magnetic track lighting can work with smart lighting control systems such as TUYA/ZIGBEE/DALI/CASAMBI

Is dimming magnetic track lighting energy efficient?

Yes. Lowering brightness reduces energy consumption and heat output, which can also extend the lifespan of LED components. This makes dimmable magnetic track lighting both energy-efficient and environmentally friendly.
