Magnetic Track LED Spotlight

Products

Home

Magnetic Track lighting system

LED Aluminum Modern Adjustable Magnetic Track Spot Light

LED Aluminum Modern Adjustable Magnetic Track Spot Light

Gemini series bring us more flexible and amazing optical options.

Three sizes with different beam angles each, Lens and reflectors both available obtained by means of refractive or hybrid units. Junction arm integrated in the spotlight’s body to keep the barycentre aligned with the track and prevent any imbalance in possible suspension versions of track and prevent any imbalance in possible suspension versions of the track. The junction allows 360°rotation.

  • Item No :

    Gemini65
  • Order(MOQ) :

    50Pcs
  • Product Origin :

    China
  • Color :

    Sandy Black/White
  • Lead Time :

    Regular 20 days, Customized 30 days
  • Installation :

    Surface/Pendant/Recessed
  • Customization Option :

    Support Custom
New Products

LED Aluminum Modern Adjustable Magnetic Track Spot Light

Product Description

LED aluminum modern adjustable magnetic track spot light is a magnetic track spotlight that combines modern design with efficient lighting. It uses a high-quality aluminum alloy shell with excellent heat dissipation performance and excellent durability.



Gemini series features an innovative optical design, allowing you to switch freely between lenses and reflectors for customized beam control. Whether you need focused precision or wide, soft illumination, a simple switch adapts to your needs—effortlessly transforming light for any space.



LED aluminum modern adjustable magnetic track spot light



Specification
Product Code: Gemini65
Color:    Sandy Black/White
Installation:     Surface/Pendant/Recessed
Power:     16W
Lumen:   1300Lm
Environment:    Indoor
Beam angle:     15°/24°/36°
CCT:         2700K/3000K/4000K
CRI:    >90
LED:        CREE
DIM:       Triac,0/1-10V,Dali,Tuya,Zigbee



Product Features
  •  Patent and unique design
  •  All our products have private toolings. We design every model by ourselves. You could never buy the exactly same product from other suppliers in the market.
  •  Unique snap fit magnetic design,tool- free installation
  •  Excellent surface finish
  •  CE /Rohs/ETL certified



Product Highlights
  • Innovative magnetic design, flexible adjustment The magnetic track system does not require complicated installation steps. It can be automatically adsorbed on the track with just a gentle push. It can slide flexibly and adjust quickly without tools.
  • High-quality aluminum alloy material Adopting aviation-grade aluminum alloy shell, it is sturdy and durable with excellent corrosion resistance; High-quality materials bring excellent heat dissipation effect, avoid light decay caused by high temperature, and ensure longer service life.
  • Multiple color temperatures are available to meet the needs of multiple scenarios Provide three color temperatures: 2700K warm white light, 3000K natural light, and 4000K cold white light; Whether it is to create a warm home atmosphere or a cold light display space, it can be perfectly matched.



Maintenance Suggestions
  • Avoid contact with water: Please avoid contact with water to avoid short circuit or damage.
  • Check the connection: Regularly check whether the connection between the track and the lamp is firm to avoid looseness.



Product Application

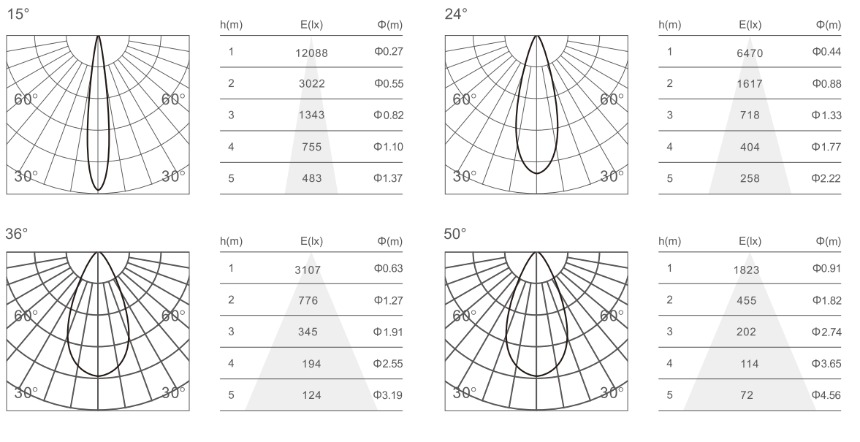

Light Distribution



FAQ

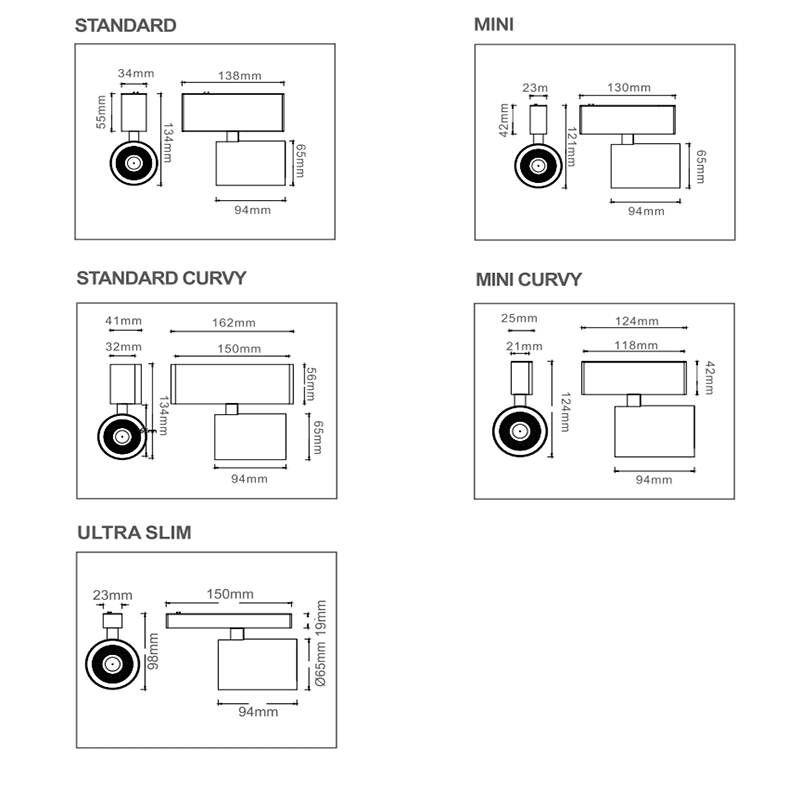

1. What’s the size difference of vandolite magnetic track light?

Vandolite magnetic track light with various options:

  • Standard track system             W39*H78mm(linear/ curvy)
  • Mini track system                     W28*H58mm (linear/ curvy)
  • Ultra slim track system             W28*H29mm
  • Linear up-down track system   W28*H63/87mm
  • 10mm width (New)



2. Why Vandolite belt track light is a new concept lighting and what’s the difference between Vando and Others?

  • Patent and unique design
  • All our products have private toolings. We design every model by ourselves. You could never buy the exactly same product from other suppliers in the market.
  • Safe and Strong electrical conductive: With 4line suppot 0-10/triac/DALI dimming.
  • Easy Customization : Belt could be random cut, lamps could be placed randomly.
  • Innovation&Comprehensible:Belt lighting can freely create both independent and interactive areas,creating opportunities for relaxed communication,collaboration,and exploration.
  • Emotional connection: Belt and lamp with comfortable colors options,creates a uniquely personalized emotional atmosphere with its smooth and continuous form.
  • Widespread use System: Create breathtaking light displays that span from ceiling to floor, reaching a staggering height of 30 meters.



3. Can I make up customize shape track system?

  • Sure, we provide a variety size of tracks and corners, so you can make a flexible design from straight to curvy, you can install in any space from wall to ceiling,from residential to commercial projects



4. Are the Belt/Tracks field-cuttable?

  • Yes, you might share the project drawing,our sale team and excellent R&D team will provide the solution according your specific requirement



5. For the Belt track system what's the difference between 3 wire and 4 wire?

  • The cables: Inside 4 line belt are silicone conductive wires  inside 3 line belt are just bare copper wires.
  • Patent issue : 4 line belt doesn’t have patent issue. 4 line belt is our unique design, specially developed by our company.    3 line belt is exactly same to Vibia’s plusminus, it’s Vibia’s patent product.
  • Insulation &size : The silicone conductive wires can also be made into 2 or 3 line ;
  • The silicone layers ensure the good insulation performance of belt track;
  • Dali control:  2 cables in the middle of 4 line belt can be used for Dali control, but the bare copper wires cannot be used to make a 4-line belt of this size.
  • Price: 3 line belt is much cheaper than 4 line belt, but most of our customers prefer 4 line belt cause they want to avoid patent issue. You can think about this and choose the most suitable one for you.



6. Do you accept small project order? What’s order lead time?

  • We don’t have MOQ limited. Lead times may vary depending on order quantity and materials availability. Our team will provide you with an estimated delivery time when you place your order.



7. How is the quality guarantee?

  • Our strictly and reliable QC team always 100% inspection on raw materials, 100% aging test and final Inspection before shipment. We provide 3years warranty from the shipment date.
