Small size 27.5mm Magnetic lighting
Fold12-s
Thanks to Fold series' interpreting another presentation of spot lighting and wall washer,
with its 90〫foldable and elegant golden cutted design, avaiable in both deep antiglare spot and opal
Minimal glare and multiple light beams
Elegent body coating and antiglare cover
External dimming interface withTriac,0/1-10V,Dali
  • Technical Specifications

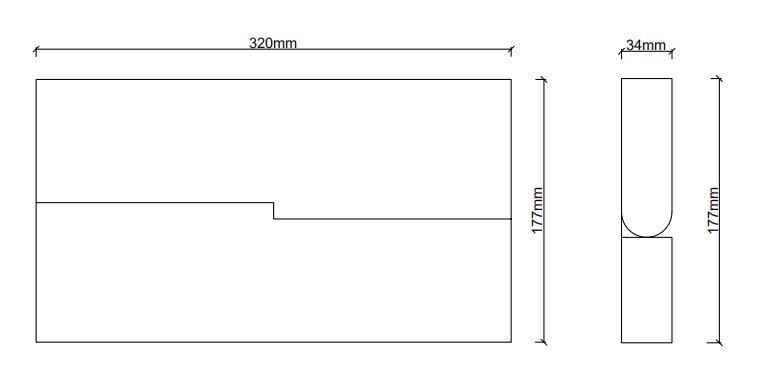

    Technical drawing
























    Schematic light drawing

    Catch585E.jpgBeam Angle:34°



    h(m)E(lx)D(m)

    141100.45

    210270.9

    34561.36

    42561.81

    51642.26



















    Main specifications


    Number of heads:12





    Lamp category:LED





    Power:16W





    CCT:2700K/3000K/4000K/5000K





    CRI:80/90





    Lumen(lm):1000





    Mountings:Magnetic Track





    Environment:Indoor




    Optical


    Lighting type:Direct





    LED type:SMD LED





    Lighting distribution:Symmetric





    Optical type:Spot





    Beam angle(°)12/34/48




    Electrical


    Voltage(V):24





    Dimmable:Yes





    Driver:Remote





    Driver type:Electronic





    Emergency:Without





    Insulation class:




    Physical


    Color:Black RAL9005/white RAL9003





    Orientation:No





    Weight(kg):1.6




    Package


    Number/Ctn(kg):10





    N.W/Ctn(kg):16





    G.W/Ctn(kg):17.8





    L*W*H(cm):45*38.5*30




    Certificates
