Small size 27.5mm Magnetic lighting
Fold06-s
Thanks to Fold series' interpreting another presentation of spot lighting and wall washer,
with its 90〫foldable and elegant golden cutted design, avaiable in both deep antiglare spot and opal
Minimal glare and multiple light beams
Elegent body coating and antiglare cover
External dimming interface withTriac,0/1-10V,Dali



  • Technical Specifications

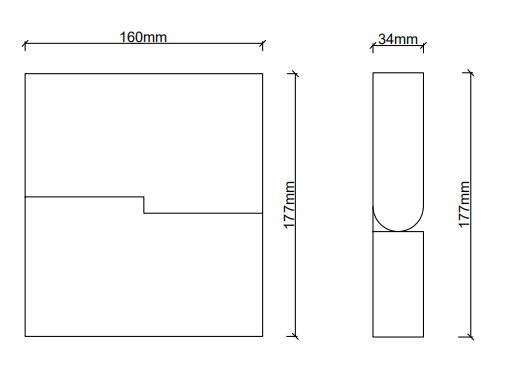

    Technical drawing




    Schematic light drawing


         		Beam Angle:12°
    h(m)E(lx)D(m)
    125770.41
    2644083
    32861.25
    41611.67
    51032.09









    Main specifications

    		Number of heads:6



    		Lamp category:LED



    		Power:8W



    		CCT:2700K/3000K/4000K/5000K

    		CRI:80/90



    		Lumen(lm):511



    		Mountings:Magnetic Track



    		Environment:Indoor


    Optical

    		Lighting type:Direct



    		LED type:SMD LED



    		Lighting distribution:Symmetric



    		Optical type:Spot



    		Beam angle(°)18/34/48


    Electrical

    		Voltage(V):24



    		Dimmable:Yes



    		Driver:Remote



    		Driver type:Electronic



    		Emergency:Without



    		Insulation class:Ⅲ


    Physical

    		Color:Black RAL9005/white   RAL9003

    		Orientation:No



    		Weight(kg):0.89


    Package

    		Number/Ctn(kg):20



    		N.W/Ctn(kg):17.8



    		G.W/Ctn(kg):20.8



    		L*W*H(cm):49*41.5*30


    Certificates
