Dot series
Dot01
The best present for the concept of invisible source
Comfortable lighting without glare
Minimal glare and multiple light beams
Elegent body coating and antiglare cover
External dimming interface withTriac,0/1-10V,Dali
  • Technical Specifications

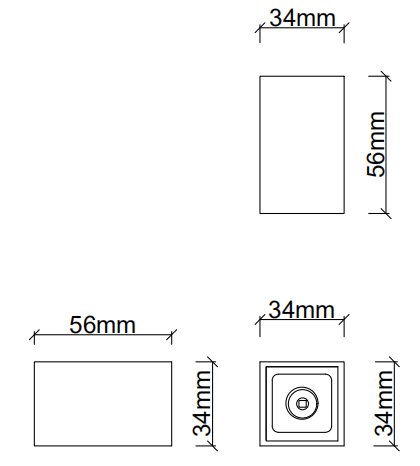

    Technical drawing



    Schematic light drawing

    		Beam Angle:34°

    h(m)E(lx)D(m)
    15170.61
    21291.23
    3571.85
    4322.47
    52030.90











    Main specifications

    		Number of heads:1



    		Lamp category:LED



    		Power:1W



    		CCT:2700K/3000K/4000K/5000K



    		CRI:80/90



    		Lumen(lm):80



    		Mountings:Magnetic Track



    		Environment:Indoor


    Optical

    		Lighting type:Direct



    		LED type:SMD LED



    		Lighting distribution:Symmetric



    		Optical type:Spot



    		Beam angle(°)12/34/48


    Electrical

    		Voltage(V):24



    		Dimmable:No



    		Driver:Remote



    		Driver type:Electronic



    		Emergency:Without



    		Insulation class:Ⅲ


    Physical

    		Color:Black RAL9005/white RAL9003



    		Orientation:No



    		Weight(kg):0.09


    Package

    		Number/Ctn(kg):80



    		N.W/Ctn(kg):7.2



    		G.W/Ctn(kg):9.4



    		L*W*H(cm):44.5*23.5*23.5


    Certificates
